This is a complete package with everything required to start production.

Accuracy: +/- 0.05mm over the whole machine

Package Includes:

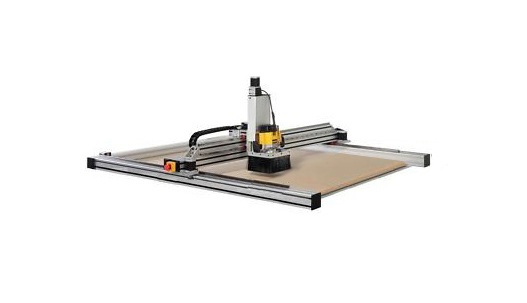

Desktop Rack and Pinion Machine Assembled

4' x 4' Working Area

Z axis 100mm

Footprint:
1900mm x 1900mm

Translation:

X and Y axis - rack and pinion

Z axis - ballscrew

Linear: X, Y and Z axis 20mm Hiwin rails and carriages

Power 240V - 1 socket required (4 way extension lead supplied)

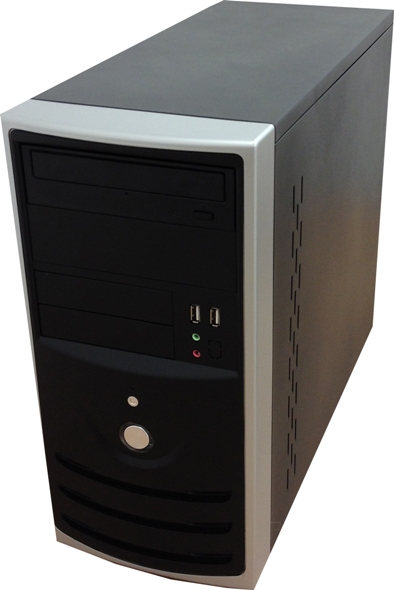

Dedicated CNC workstation, monitor, keyboard and mouse

Software - Mach3 full license preloaded on CNC workstation

Design software - VCarve Pro 7

Electronic Jogging Handwheel

Super SBOX 4 axis CNC controller

X, Y, and A axis - NEMA34 stepper motor with planetary gearbox

Z axis - NEMA 23 stepper motor

Proximity home switch (X, Y and Z)

External emergency stop

3kW air cooled spindle, ER20, max collet 12.7mm (3-4mm, 5-6mm, 7-8mm, 12mm, 1/2 inch)

380V inverter supplied

Bespoke motor mount with brushed dust extractor hood for 38/63mm hose

Shipping price added during checkout includes installation and initial training followed by free email and telephone support

Interest Free Pay Monthly Options Available
