NEW FOR 2013

This is a complete package with everything required to start production.

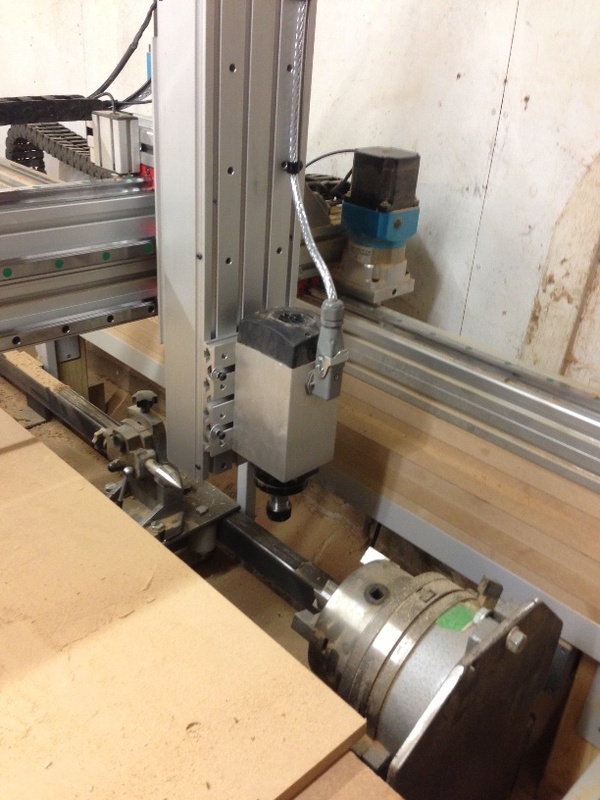

This machine package has been designed to allow 3 and 4 axis machining as well as future use as a 5 axis with the addition of a B and C drive, offering 300mm of Z stroke and allowing the production of large diameter products via a 4^th axis.

Based on our previous  8’ x 4’ CNC machine design with the addition of:

1. Additional 20mm profile rail and preloaded carriage on X axis beam.

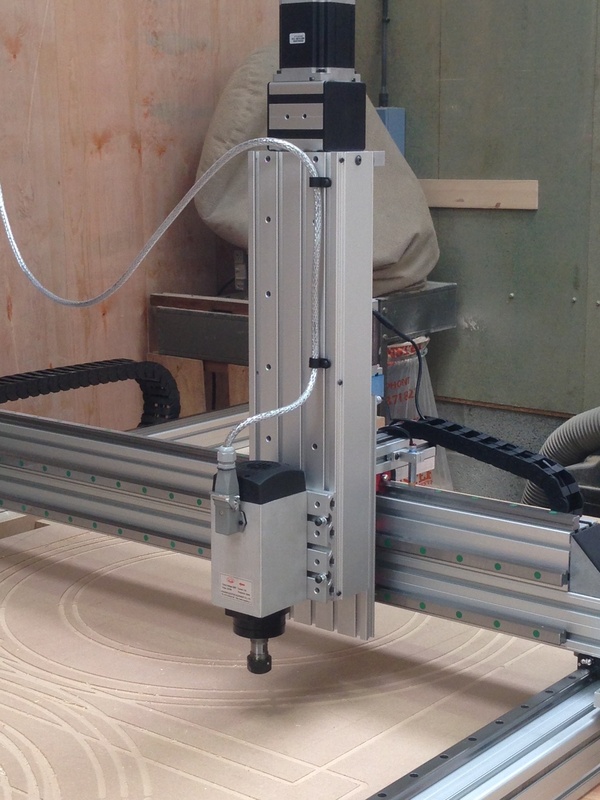

2. New design of Z axis, as used on our 5 Axis CNC machines with 300mm of usable stroke.

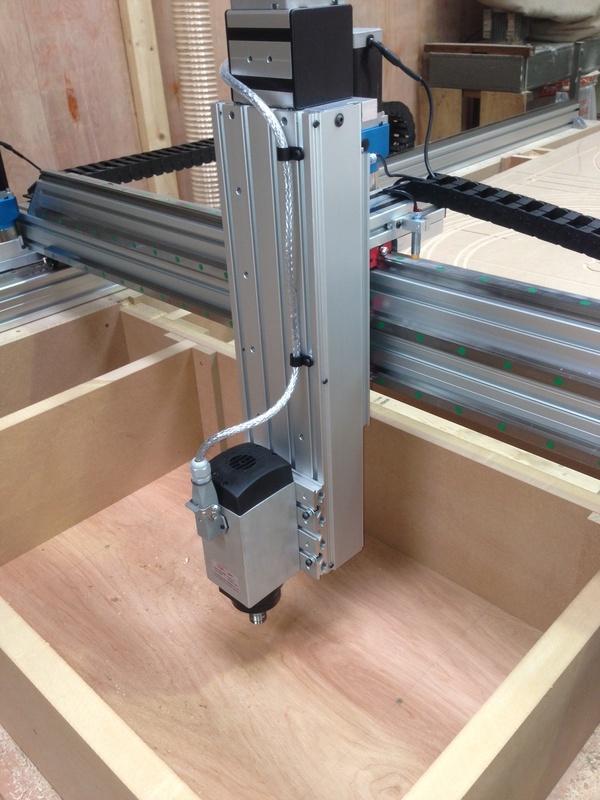

3. Z axis has twin profile rail with x4 light preloaded carriages and fitted with proximity switch.

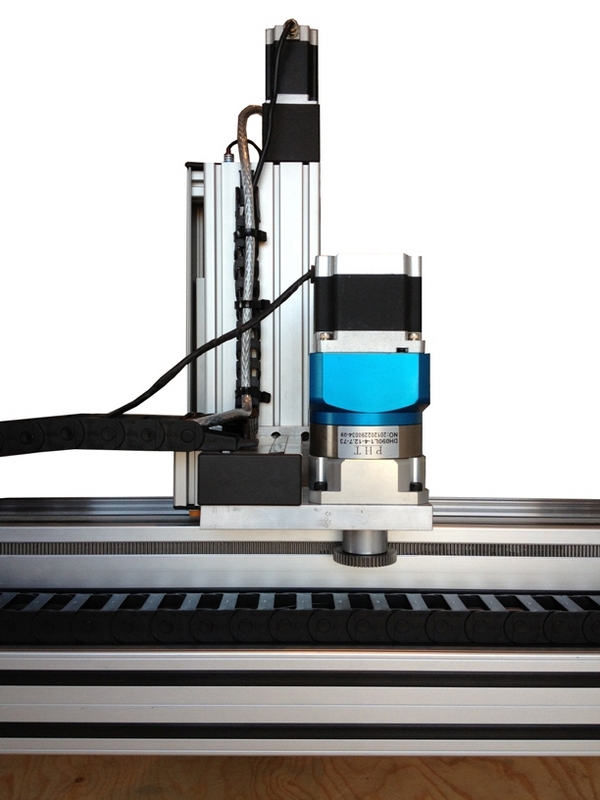

4. Adjustable spindle motor plate for easy adjustment and alignment.

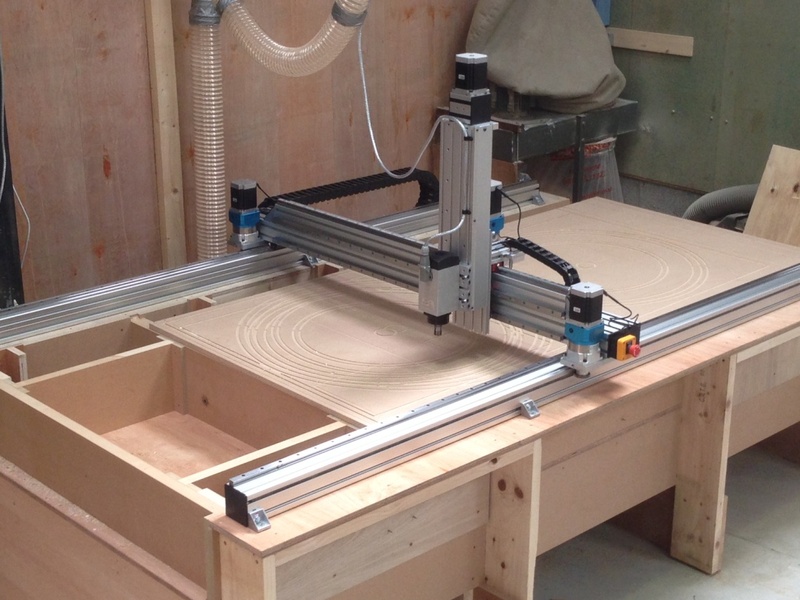

Machine Working Area:

Y: 2500mm

X: 1250mm

Z: 90mm standard (when machine is on a flat even bench)

(300mm without machine bed using a custom bench/bed)

Footprint: requires a custom desktop / bench 3100mm x 1900mm (contact us for more info)

Length: 2900mm

Width: 1900mm

Height: 900mm

Accuracy: +/- 0.05mm over 2500mm

Package Includes:

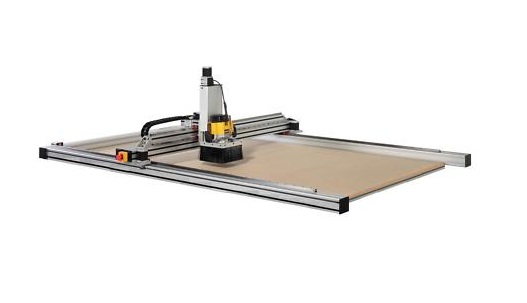

Desktop Rack and Pinion Machine Assembled

8’ x 4’ – 2500mm x 1250mm,  Z axis 300mm (see above)

Translation:

X and Y axis - rack and pinion

Z axis - ballscrew

Linear: X, Y and Z axis 20mm Hiwin rails and carriages

Power 240V – 1 socket required (4 way extension lead supplied)

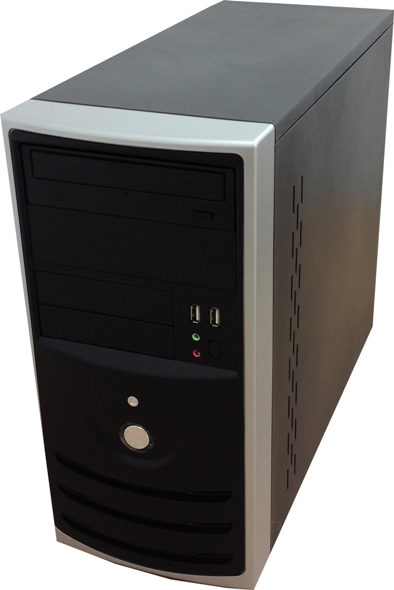

Dedicated CNC workstation, monitor, keyboard and mouse

Software – Mach3 full license preloaded on CNC workstation

Design software – VCarve Pro 7

Electronic Jogging Handwheel

Super SBOX 4 axis CNC controller

X, Y, and A axis – NEMA34, 7.8 Amp stepper motor with planetary gearbox

Z axis – NEMA 34 stepper motor

Proximity home switch (X, Y and Z), additional external emergency stop

3kW air cooled spindle, ER20, max collet 12.7mm (3-4mm, 5-6mm, 7-8mm, 12mm, ½ inch)

380V inverter supplied

Bespoke motor mount with brushed dust extractor hood for 75/100mm hose

Shipping price added during checkout includes installation and initial training followed by free email and telephone support

Note: Price does not include rotary 4th axis

Interest Free Pay Monthly Options Available
