This is a complete package with everything required to start production.

Working Area:

Y: 2500mm

X: 1250mm

Z: 100mm standard

(220mm without machine bed)

Footprint:

Length: 3100mm

Width: 1900mm

Height: 1700mm

Accuracy: +/- 0.05mm over 2500mm

Package Includes:

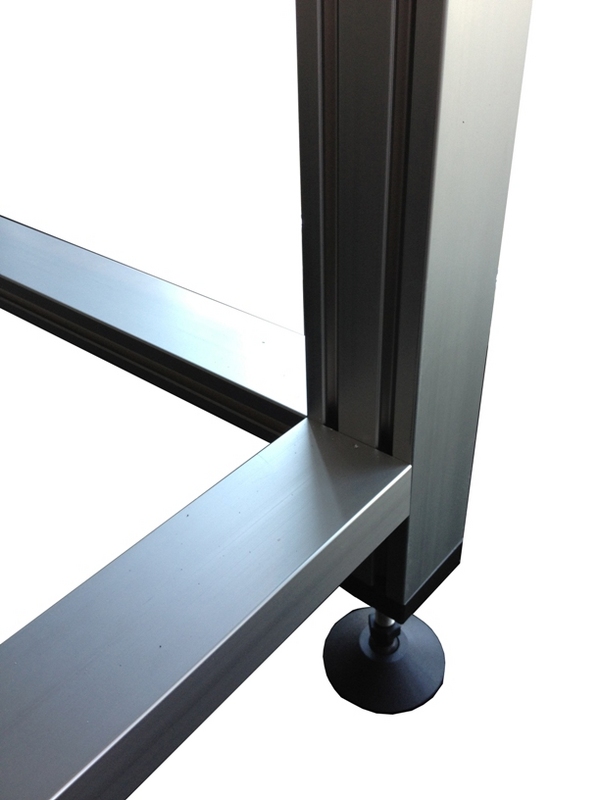

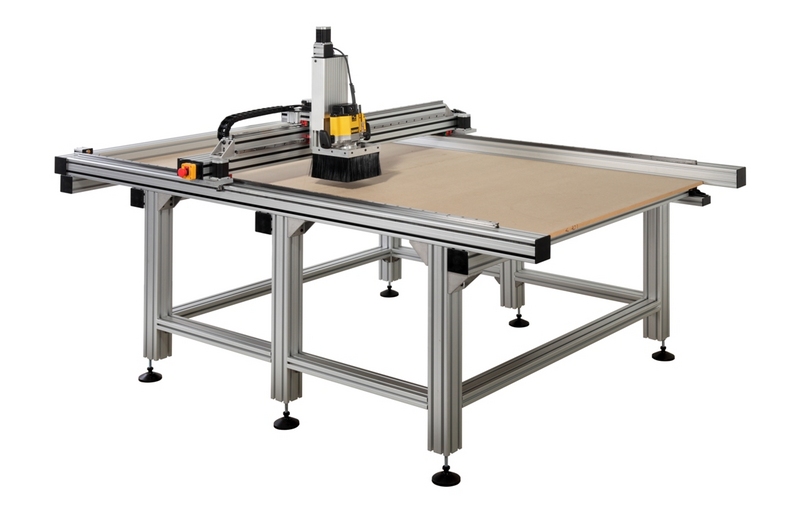

Free Standing Rack and Pinion Machine Assembled

8' x 4' - 2500mm x 1250mm

Z axis 100mm

Translation:

X and Y axis - rack and pinion

Z axis - ballscrew

Linear: X, Y and Z axis 20mm Hiwin rails and carriages

Power 240V - 1 socket required (4 way extension lead supplied)

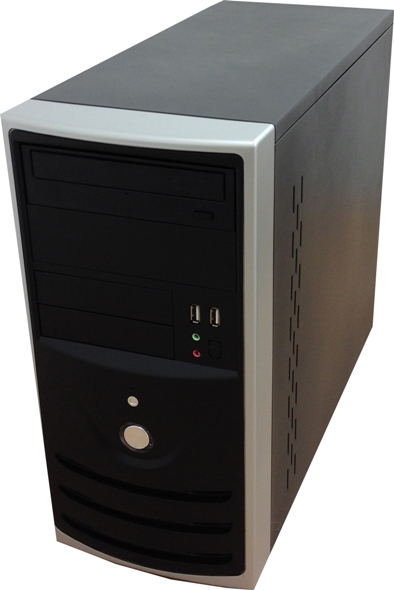

Dedicated CNC workstation, monitor, keyboard and mouse

Software - Mach3 full license preloaded on CNC workstation

Design software - VCarve Pro 7

Electronic Jogging Handwheel

Super SBOX 4 axis CNC controller

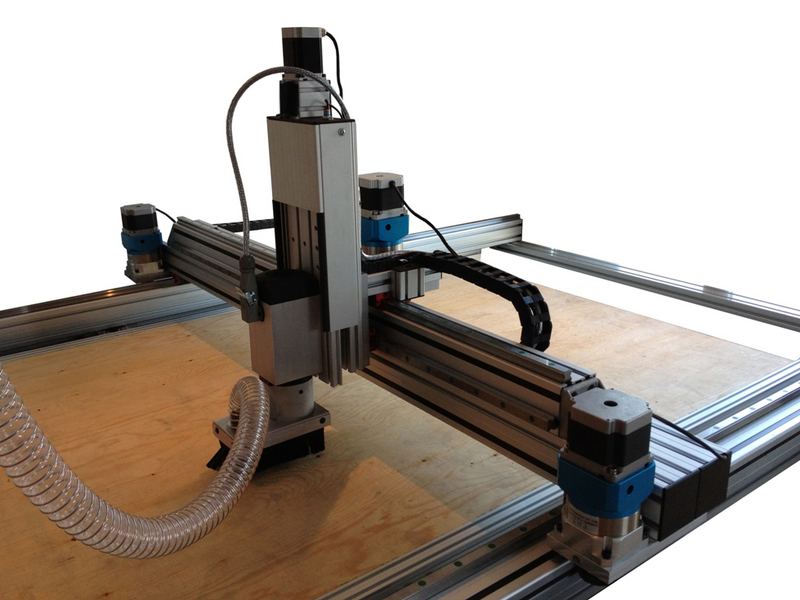

X, Y, and A axis - NEMA34 stepper motor with planetary gearbox

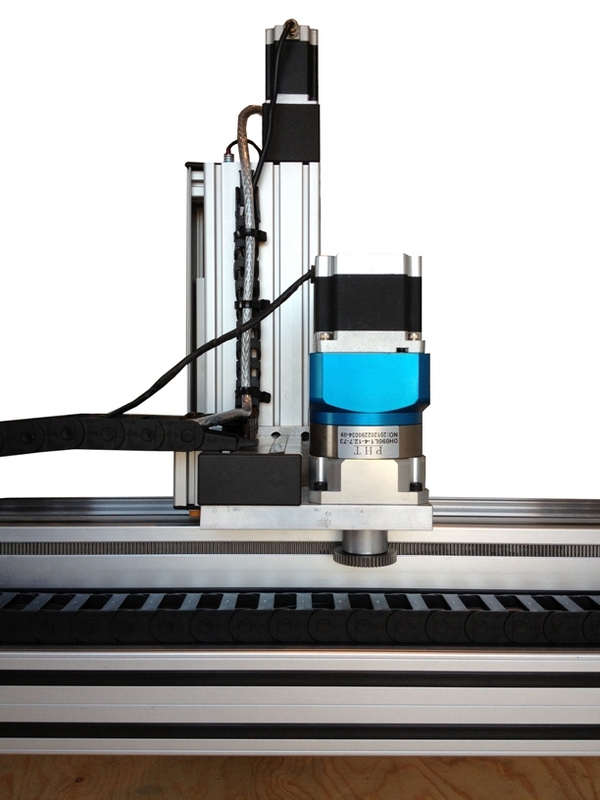

Z axis - NEMA 23 stepper motor

Proximity home switch (X, Y and Z)

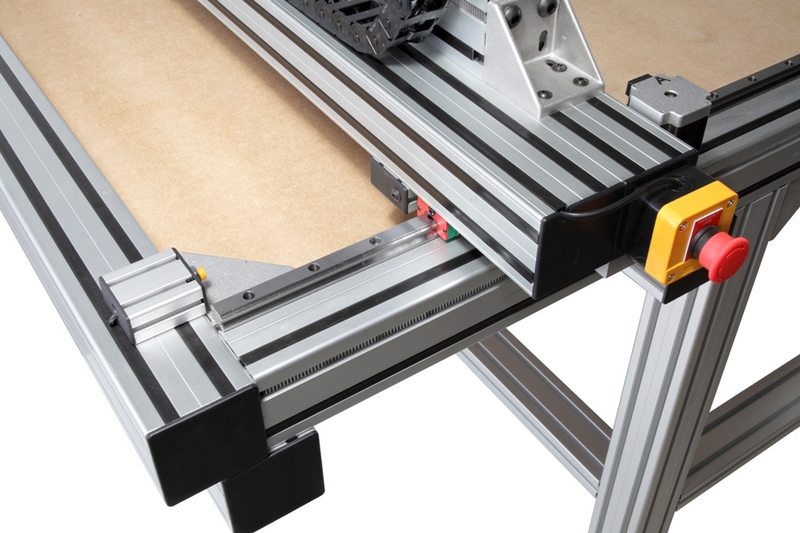

External emergency stop

3kW air cooled spindle, ER20, max collet 12.7mm (3-4mm, 5-6mm, 7-8mm, 12mm, 1/2 inch)

380V inverter supplied

Bespoke motor mount with brushed dust extractor hood for 38/63mm hose

Shipping price added during checkout includes installation and initial training followed by free email and telephone support

Interest Free Pay Monthly Options Available

 Homing

 Kitchen Cabinet Interpolation

 22mm Plywood

 Text Engraving
